K-Means Clustering

K-means clustering is a machine learning algorithm that groups data points into clusters based on their similarities. It works by repeatedly adjusting cluster centers until they stabilize, forming distinct clusters where data points are more alike within a cluster than they are to those in other clusters. K-means is used in many areas, from organizing customer data for targeted marketing to simplifying images for faster processing.

By the end of this lesson, you'll have a better idea of how to answer the following commonly asked questions:

1. Does K-means clustering always produce the same results?
2. How can we mitigate the variability in K-means clustering results?

We'll provide the answers at the end of this lesson.

Overview

Algorithm

1. Initialise parameter $k$, and $k$ cluster seeds $m_1^{(1)}, m_2^{(1)}, ...,m_k^{(1)}$
2. Assignment step: Assign each sample to the nearest cluster
3. Update step: Calculate the new means for all new clusters
4. Repeat steps 2 and 3 until the centroids are stable / membership of cluster is stable

Equation for the assignment step:

$$S_i^{(t)} = \{x_p:|| x_p-m_i^{(t)}||^2 \le||x_p-m_j^{(t)}||^2, \forall j, 1\le j\le k\}$$

Where

• $S_i^{(t)}:$ Set of points belonging to cluster $i$ at step $t$
• $x_p:$ Position of point of interest
• $m_i^{(t)}:$ Centroid of cluster $i$ at step

This equation assigns each data point $x_p$ to the cluster $i$ whose centroid $m_i^{(t)}$ is closest to it, based on the Euclidean distance squared, among all centroids $m_j^{(t)}$ for $j$ in the range from 1 to $k$.

Equation for the update step:

$$m_i^{(t+1)} = \frac{1}{|S_i^{(t)}|}\sum_{x_j\in S_i^{(t)}} x_j$$

Where

• $S_i^{(t)}:$ Set of points belonging to cluster $i$ at step $t$
• $x_j:$ Sample $j$
• $m_i^{(t)}:$ Centroid of cluster $i$ at step

This update step recalculates the centroid $m_i^{(t+1)}$ of cluster $i$ at the next iteration $t+1$ by averaging the positions of all data points $x_j$ belonging to cluster $i$ at the current iteration $t$.

Example of the K-means algorithm in action:

The circles depict the data points, each colored according to its assigned cluster, while the triangles represent the centroids of those clusters. In this example, Euclidean distance is used for membership determination, and the algorithm converges after only three assignment and update steps, stabilizing the membership of each cluster.

Pseudocode

From the outlined algorithm, we can construct a pseudocode for K-means clustering as follows:

Pseudocode
1. Initialize cluster centroids randomly

2. Repeat until convergence:
    a. Assign each data point to the nearest cluster centroid
    b. Update cluster centroids based on assigned data points

3. Check for convergence:
    Stop if centroids have not changed significantly

4. Output final cluster centroids and assignments

Evaluation

Since K-means is unsupervised learning, there is a lack of labeled datasets to calculate typical evaluation metrics like accuracy and confusion matrices. As such, evaluating the results of K-means requires us to look at the clusters and evaluate how "well-formed" they are. These are two popular evaluation techniques:

Elbow method. The elbow method is a common technique used to determine the optimal value of $k$ in K-means clustering, which represents the ideal number of clusters to effectively group the data. It works like this:

1. First, try clustering the data with different values of K, e.g. 1 to 10.
2. For each value of K, calculate the 'cost' or 'distortion', which measures how spread out the points are within their clusters. Lower distortion generally means better-defined clusters.
3. Now, plot these costs against the corresponding values of K. It's like making a graph where the x-axis shows different values of K, and the y-axis shows the costs.
4. Here's the key: As K increases, the cost will generally decrease. That's because with more clusters, each point is closer to its cluster center. But at some point, adding more clusters doesn't improve things much. The improvement starts to slow down, and the cost decreases more slowly.
5. The "elbow point" on the graph is where this slowdown happens. It's called the elbow because if you imagine the graph as an arm, this point is where the arm bends like an elbow. Beyond this point, adding more clusters doesn't significantly decrease the cost.

So, the optimal value of K is often chosen as the value corresponding to this elbow point. This is where you get the most 'bang for your buck' in terms of improving clustering quality.

Silhouette analysis: Silhouette analysis measures how similar each point is to its own cluster (cohesion) compared to other clusters (separation). It yields a silhouette score that ranges from -1 to 1, where a higher silhouette score indicates better-defined clusters.

The silhouette score $s(i)$ for a point $i$ is calculated as follows:

$$s(i) = \frac{b(i) - a(i)}{\max(a(i), b(i))}$$

Where

• $s(i)$ : silhouette value for point $i$
• $a(i)$ : average distance from $i$ to all other points in the same cluster.
• $b(i)$ : average distance from $i$ to all points in the closest cluster that $i$ is not a part of.

A higher silhouette score indicates that the data points are well-matched to their own cluster and poorly matched to neighboring clusters, thus implying well-defined clusters.

Limitations

Variability in results: K-means clustering may yield different outcomes depending on the initial seed used, leading to potential inconsistency in results.

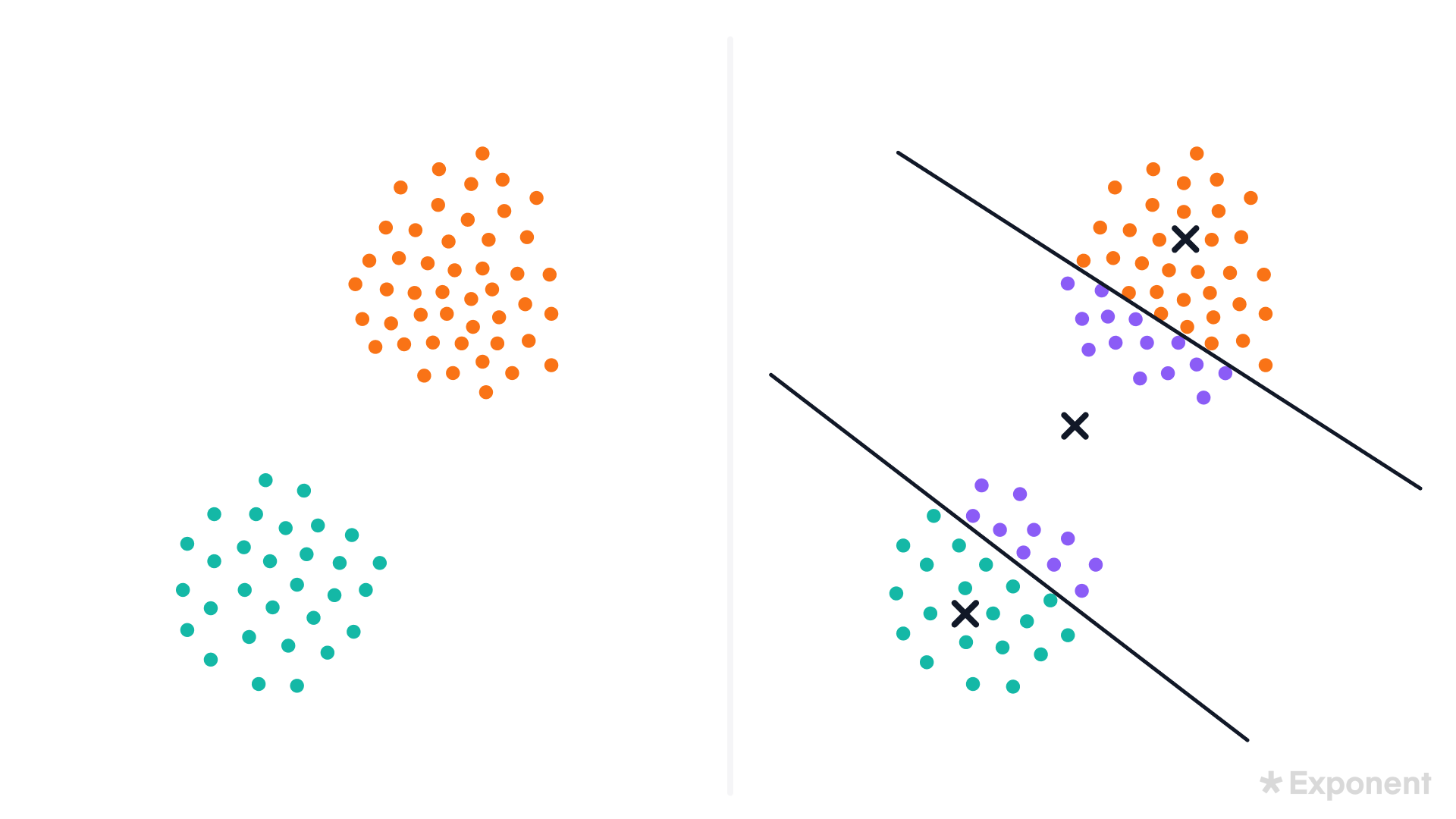

Forced clustering: It rigidly enforces the specified number of clusters (K), potentially partitioning data into K regions even if fewer clusters would be more appropriate, necessitating prior knowledge of the ideal value for K. In the example below, K-means forcefully splits a clearly two-cluster region into three clusters because the value of K was set to 3.

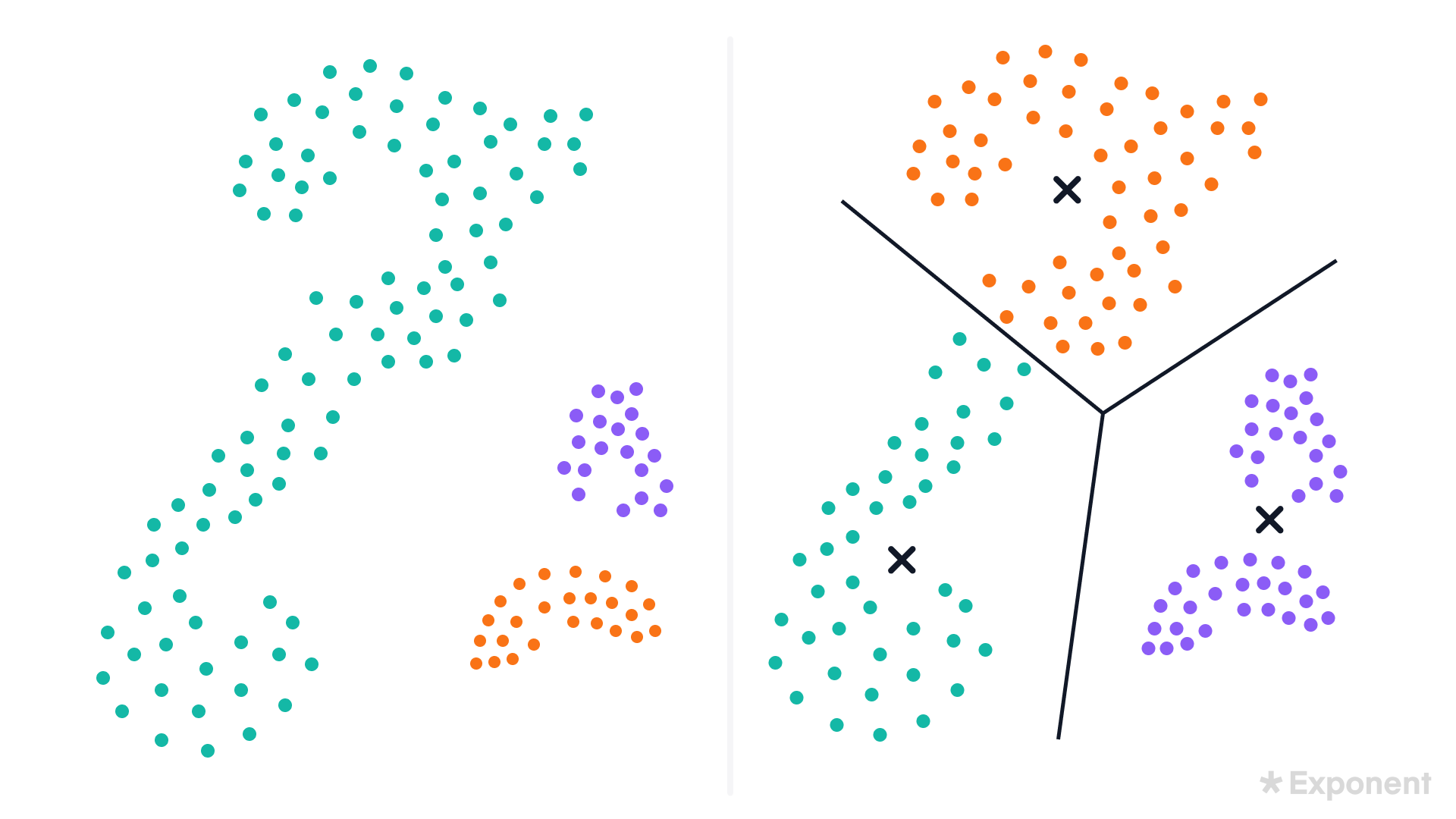

Shape bias: K-means tends to favor identifying circular clusters, which restricts its ability to accurately detect clusters with non-circular shapes. In the example below, although there are three distinct clusters, K-means misclassifies them because it struggles with non-circular shapes.

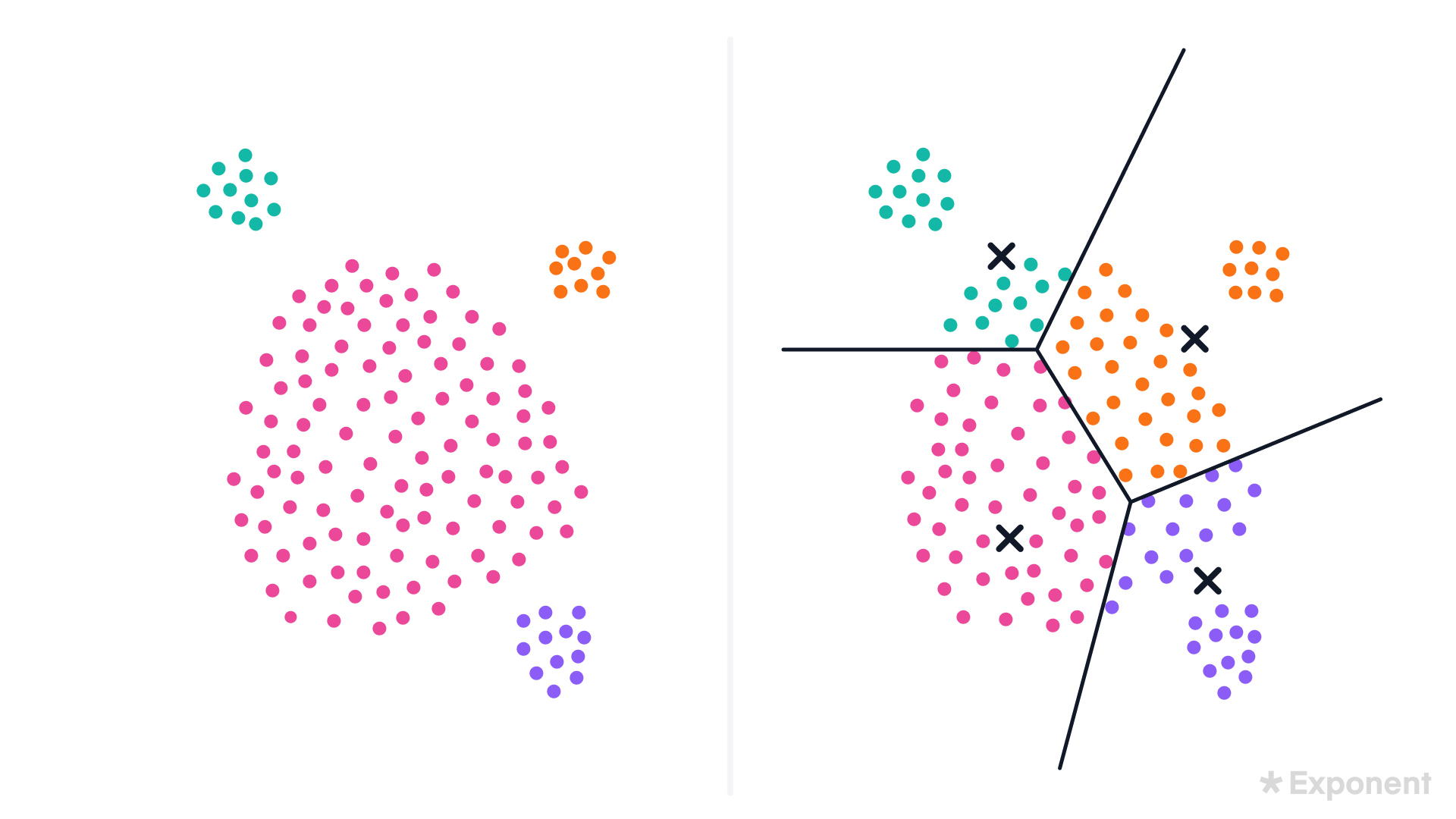

Susceptibility to unbalanced datasets: Uneven sample distributions within the dataset can cause K-means to generate inaccurate clusters, particularly if clusters are expected to be of similar sizes.

Employing K-means clustering

Here are a few prevalent methods and libraries for utilizing K-means clustering in code:

Using scikit-learn:

Python
from sklearn.cluster import KMeans
import numpy as np

# Create a KMeans object with the desired number of clusters
kmeans = KMeans(n_clusters=3)

# Fit the KMeans model to the data
kmeans.fit(data)

# Get cluster assignments for each data point
labels = kmeans.labels_

# Get cluster centroids
centroids = kmeans.cluster_centers_

Using SciPy:

Python
from scipy.cluster.vq import kmeans, vq

# Perform K-means clustering
centroids, labels = kmeans(data, K)

# Get cluster assignments for each data point
labels, _ = vq(data, centroids)

Common questions

Q: Does K-means clustering always produce the same results?

A: No, K-means clustering may not always produce the same results due to its tendency to converge to a local optimum rather than a global optimum. This variability arises from factors such as the random initialization of centroids and the sensitivity of the algorithm to the order of data points.

Q: How can we mitigate the variability in K-means clustering results?

A: To mitigate this variability, multiple runs of the algorithm with different initializations can be performed. Then, the solution with the lowest distortion (inertia) can be selected as the final result. Additionally, advanced techniques such as K-means++ initialization or using a higher value of k can help improve the consistency of the results by guiding the initial centroid selection process.
